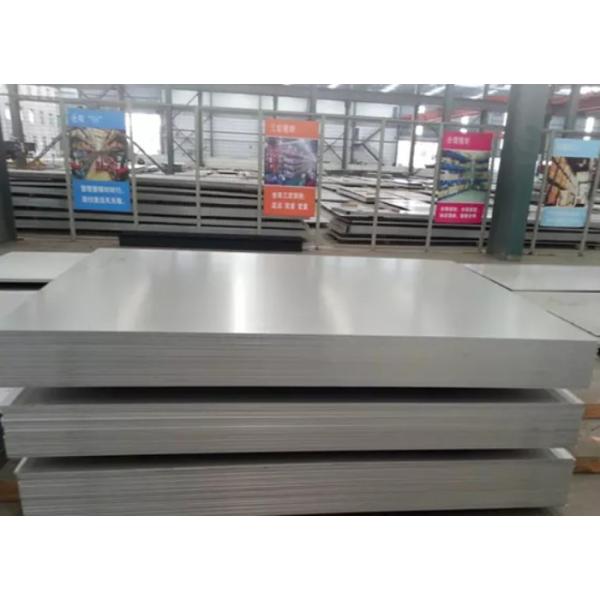

| # Monel Alloy 400 Plate General Information Monel 400 heat treatment needs to be carried out in an atmosphere that is sulfur-free reducing. The range of annealing for the heat treatment of Monel 400 is between temperatures of 1300 to 1800 °F. Albeit, the most typical temperature range at which the heat treatment of Monel 400 can be carried out is between 1600 to 1800 °F. The Tensile Strength (annealed) of Monel 400 is 75-90 ksi (517-620 MPa). The Yield Strength of Monel 400 is 25-50 ksi (172-345 MPa). Monel 400 Modulus of Elasticity is 26000 ksi (179 GPa). The Poisson’s ratio of Monel 400 is 0.32. # Monel Alloy 400 Plate Casting Grade Monel 400 casting grade varies and the truth is that in the past few years, a lot of work has been put in, in the development of improving the properties of the casting grades of Monel, by using silicon in an increased quantity. By differing the amount of silicon that is being used, the hardness of the castings of Monel can be increased. The main reason for increasing the amount of silicon, is as a result, Monel is obtained that is non-galling or non-selzing. This super alloy Monel 400 is available in some very typical shapes such as plate, sheet, pipe, round, tube, strip, hexagon and wire. # Monel Alloy 400 Plate Material Properties Alloy 400 material properties is that it has a Chemical Composition of Carbon, C 0.3% max, Copper, Cu 28-34%, Manganese, Mn 2% max, Silicon, Si 0.5% max, Iron, Fe 2.5% max, Sulphur, S 0.024% and Nickel, Ni remainder. The Density of Alloy 400 is 0.318 lb/in3 (8.8 gm/cm3). Monel 400 has many applications such as, oil well recovery pumps, chlorinated solvents, marine components, crude oil distillation towers, wire netting for insulation, salt production, salt residual compounds, ethyl chloride purification, shafting, marine splash zone sheathing, HF alkylation, MEA reboilers, HF reboilers, etc. # Monel Alloy 400 Plate Standard Stock Specifications
• UNS N04400 • ASTM B127 • AMS 4544
• BS 3072NA1 • BS 3076NA13 • QQ-N-281
• DIN 17750 # Monel Alloy 400 Plate Chemical Composition, % | C | Mn | S | Si | Ni | Cu | Fe | | .30 max | 2.00 max | .024 max | .50 max | 63.0 min | 28.0-34.0 | 2.50 max | # ASTM Specifications of # Monel Alloy 400 Monel 400 Plate | Pipe Smls | Pipe Welded | Tube Smls | Tube Welded | Sheet/Plate | Bar | Forging | Fitting | Wire | | B165 | B725 | B163 | | B127 | B164 | B564 | B366 | | # Monel Alloy 400 Plate Mechanical Properties
Typical room temperature Tensile Properties of Annealed Material | Product Form | Condition | Tensile (ksi) | .2% Yield (ksi) | Elongation (%) | Hardness (HRB) | | Rod & Bar | Annealed | 75-90 | 25-50 | 60-35 | 60-80 | | Rod & Bar | Cold-Drawn Stress Relieved | 84-120 | 55-100 | 40-22 | 85-20 HRC | | Plate | Annealed | 70-85 | 28-50 | 50-35 | 60-76 | | Sheet | Annealed | 70-85 | 30-45 | 45-35 | 65-80 | | Tube & Pipe Seamless | Annealed | 70-85 | 25-45 | 50-35 | 75 max * | *The ranges shown are composites for various product sizes and therefore are not suitable for specification purposes. Hardness values are suitable for specification purposes provided tensile properties are not also specified.. Alloy 400 Trivia *Alloy 400 is slightly magnetic at room temperature. Other common names: Alloy 400 # In what forms is Monel 400 Available at Steel Tubes ? - Sheet
- Plate
- Bar
- Pipe & Tube (welded & seamless)
- Fittings (i.e. flanges, slip-ons, blinds, weld-necks, lapjoints, long welding necks, socket welds, elbows, tees, stub-ends, returns, caps, crosses, reducers, and pipe nipples)
- Wire
Monel 400 Melting Point Melting Point : 2370-2460° F. # Monel 400 Equivalent | STANDARD | UNS | WERKSTOFF NR. | AFNOR | EN | JIS | BS | GOST | | Monel 400 | N04400 | 2.4360 | NU-30M | NiCu30Fe | NW 4400 | NA 13 | МНЖМц 28-2,5-1,5 | |
